Cable OBD2 Male-Female Elbow 16wire

Cable OBD2 Male-Female Elbow 16wire

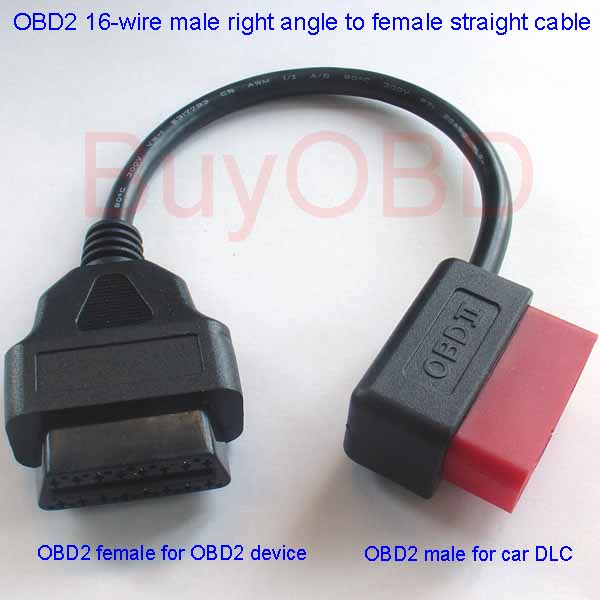

OBD2 male to female extension adaptor
Head type: OBD2 16pin elbow male to straight female
Wire: 16pins (pin-to-pin)
Extension length: 30 cm
Products Model:Cable_OBD2_MEFS16
Products Shipping Weight:0.105KG

Description:
It is used on standard OBD2 DLC.
1. It helps to relocate the scantool if interferes driver's knee or feet.
2. It helps to plug devise when the DLC is too low, driver has to step out of car and bend to reach the DLC.
3. It can extend the life of the car DLC if user needs to plug and unplug diagnostic scantool frequently.

Standard OBDII DLC pin definition:
(pins marked as N/A are open to special ECU or moduel) :
1. N/A
2. Bus + (SAE J1850 PWM, VPW)
3. N/A
4. Ground (Battery)
5. Ground (Signal)
6. CAN High (ISO 15765-4)
7. K (ISO 9141-2, SAE J2234)
8. N/A
9. N/A
10. Bus - (SAE J1850 PWM)
11. N/A
12. N/A
13. N/A
14. CAN Low (ISO 15765-4)
15. L (ISO 9141-2, ISO 14230-4)
16. Battery +12V
